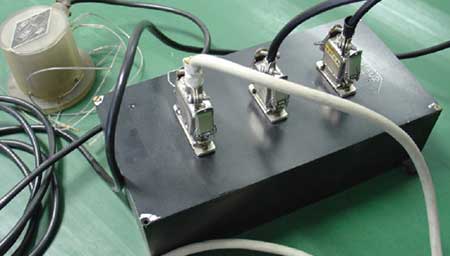

SJ-05/TS-01 Three-axis Fluxgate Magnetometer
application:Measurement satellites orbiting gesture。
compose:Three axis flux-gate sensor and signal
modulation circuit。
technical index :
Range: ±5000nT for each of X/Y/Z axis
Accuracy: ±5nT ±0.01%FS
Resolution: ±1nT
Noise:0.5nT(r.m.s)
Dynamic Response: 50ms
Three axis orthogonality: 900±0.20
Weight:1.2KG
Demension :
Probe —Φ50mm x 60mm
Electric Circuit Box— 200mm x 80mm x 30mm
Power Consumption:≤800mW
Digital Output: chip microcomputer 80C31,AD 1380
(16bits),0-5V TTL lever,synchronous serial output with 9.6kbits/s,RS-232 bus;
Life Cycle: 2 years with reliability of 0.99
