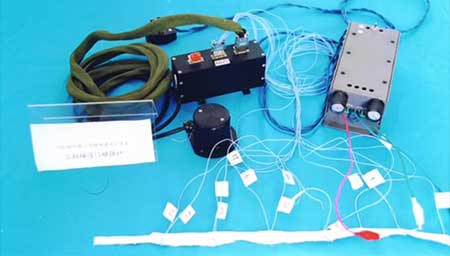

• Three-Axis Magnetometer on Board FY-01 Meteorological Satellite


    technical index：
    Range：three-axis ,±50000nT for each X/Y/Z axis
    Accuracy：±20nT
    Resolusion：±50nT
    Noise：±2nT(r.m.s)
    Stability：±10nT/24h
    Response Frequency：10Hz
    Orthogonality：900±0.30
    Analog Output：Vpltage-5V—+5V respectively be sent
    tocomputer onboard satellite and telemetry
    Power Supply：+27V，2.0±0.2W
    Weight：1.7±0.2kg
    Dimension：probe -Φ50mm x  60mm；
    Circuit Box— 140mm x 40mm x 40mm
    Power Consumption：2000MW
    Operating Temperature:Probe -600C  - 800C
      Circuit  -200C - 500C
    Life Cycle：2 years with 0.995 of reliability
